Feed Spreader / Feed Wagon

Watch Video

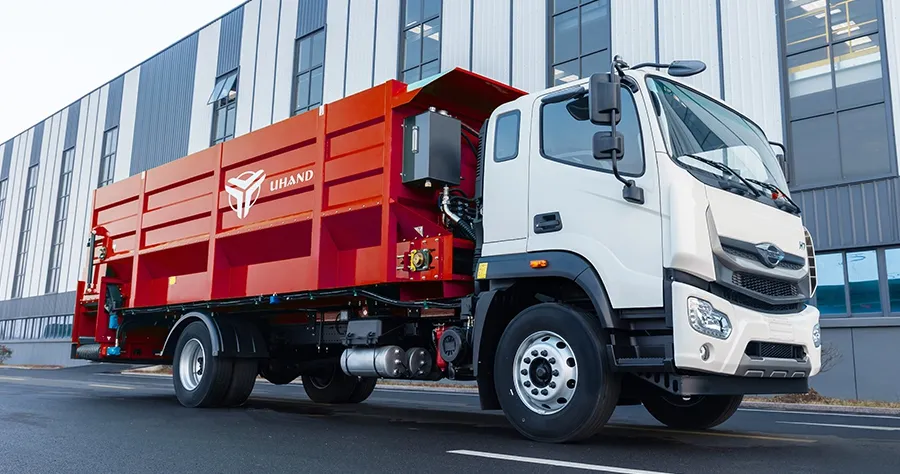

Designed for farms that need faster, cleaner, and more consistent feed delivery, the FS series feed spreader helps distribute mixed TMR, silage, forage, or pasture feed directly to cattle and sheep feeding areas. By replacing manual feeding or simple low-efficiency delivery methods, it reduces labor intensity, improves feeding speed, and supports more uniform feed placement along the bunk.
For daily farm operations, consistent discharge is critical. This feed delivery solution helps prevent overfeeding, underfeeding, and uneven distribution, while keeping the ration structure closer to the condition produced by the mixer. Farms can choose tractor-trailed or truck-mounted configurations according to feeding distance, barn layout, and operating scale. Build a more efficient feeding route around your barn passage, ration volume, and daily delivery schedule with UHAND.

Product Brochure

Key Parameters

Capacity range: 6–32 m³

Discharge method: chain scraper conveying + belt discharge

Residual feed inside the box: ≤ 3 kg

Feeding coefficient of variation (CV): < 5%, with no feed stratification

Drive options: tractor-trailed or truck-mounted

Specifications

Model	FS-05	FS-06	FS-07	FS-10
Overall Dimensions (L×W×H) (mm)	4640×1700×2600	4640×1700×2700	4640×1700×2850	6450×2250×2560/2660
Capacity (m³)	5	6	7	10
Compatible Vehicle	Wuzheng	Wuzheng	Wuzheng	Kaima
Emission Standard	-	-	-	National V/VI
Engine Power	28 hp	28 hp	28 hp	115 hp/150 hp
Max. Load Capacity (kg)	2000	2000	2000	8000
Machine Weight (kg)	2100	2200	2200	5800
PTO Method	Direct Engine	Direct Engine	Direct Engine	Direct Engine
Hopper Drive	Chain Plate	Chain Plate	Chain Plate	Chain Plate
Chain Type	Cottered Chain	Cottered Chain	Cottered Chain	Cottered Chain
Chain Quantity	2	2	2	2
Control Method	Manual	Manual	Manual	Electric

Model	FS-12	FS-16P	FS-18P	FS-20P
Overall Dimensions (L×W×H) (mm)	6400×2320×2850/2950	7400×2850×3200	8000×2850×3250	8500×2850×3250
Capacity (m³)	12	16	18	20
Compatible Vehicle	Kaima	Kaijie/Foton	Kaijie/Foton	Kaijie/Foton
Emission Standard	National V/VI	National V	National V	National V
Engine Power	115 hp/150 hp	≥140 hp	≥140 hp	≥140 hp
Max. Load Capacity (kg)	8000	10000	10000	10000
Machine Weight (kg)	5800	7800	7900	8500
PTO Method	Direct Engine	Direct Engine	Direct Engine	Direct Engine
Hopper Drive	Chain Plate	Chain Plate	Chain Plate	Chain Plate
Chain Type	Cottered Chain	Offset Sidebar Chain	Offset Sidebar Chain	Offset Sidebar Chain
Chain Quantity	2	2	2	2
Control Method	Electric	Electric	Electric	Electric

Model	FS-24	FS-30P	FS-32	FS-36	FS-40P
Overall Dimensions (L×W×H) (mm)	9600×2850×3250	10200×2850×3300	10200×3000×3450	10500×3000×3450	10700×3000×3700/3600
Capacity (m³)	24	30	32	36	40
Compatible Vehicle	Jiefang/Foton	Jiefang/Foton	Jiefang/Foton	Jiefang/Foton	Jiefang/Foton
Emission Standard	National VI/ V	National VI/ V	National VI/ V	National VI/ V	National VI/ V
Engine Power	≥220 hp	≥220 hp	≥220 hp	≥220 hp	270 hp
Max. Load Capacity (kg)	15000	15000	15000	20000	20000
Machine Weight (kg)	10000	11000	12000	14000	15000
PTO Method	Full PTO/Direct Engine	Full PTO/Direct Engine	Full PTO/Direct Engine	Full PTO/Direct Engine	Full PTO/Direct Engine
Hopper Drive	Chain Plate	Chain Plate	Chain Plate	Chain Plate	Chain Plate
Chain Type	Offset Sidebar Chain	Offset Sidebar Chain	Offset Sidebar Chain	Offset Sidebar Chain	Offset Sidebar Chain
Chain Quantity	2	2	2	2	2
Control Method	Electric	Electric	Electric	Electric	Electric

* Product images & specs are for illustrative purposes only. Minor variations (due to production batches or upgrades) may occur, with no impact on core functions. Actual product shall prevail. For inquiries, contact our sales team.

Features

Double-Side Feeding
Dual-side discharge allows the vehicle to move along the center of the barn passage and feed both sides at the same time, helping improve feeding efficiency.
Flexible Barn Access
A small turning radius makes the unit suitable for both narrow older barns and wider modern farm layouts.
Controlled Feed Delivery
Operators can adjust discharge volume and travel speed according to animal density, helping reduce feed waste and avoid insufficient feeding.

Product Advantages & Details

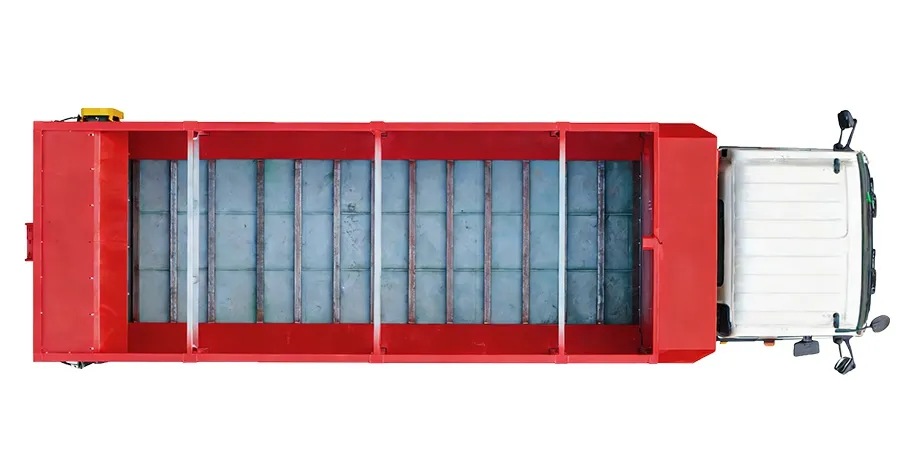

Chain Scraper System

Ration Structure Protection
Chain scraper conveying moves feed as a complete material layer instead of remixing or squeezing it like an auger. This helps prevent feed stratification inside the box and keeps the TMR ration delivered to the bunk closer to the original mixer output.

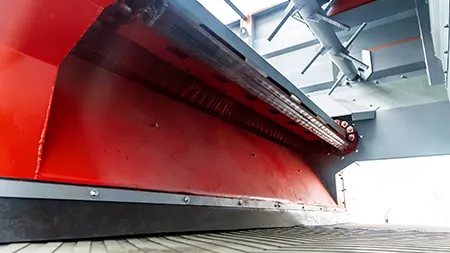

Low Feed Residue
A dedicated scraper design reduces dead corners inside the box, keeping residual feed at ≤ 3 kg. Cleaner discharge helps reduce mold risk from leftover feed and supports better feed hygiene.

Smart Structure

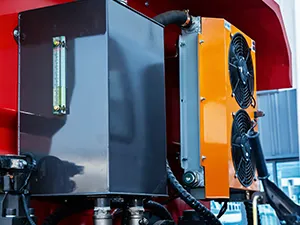

Lower Contamination Risk
An external hydraulic system keeps the hydraulic pump station away from direct feed contact, reducing the risk of hydraulic oil leakage contaminating the ration.

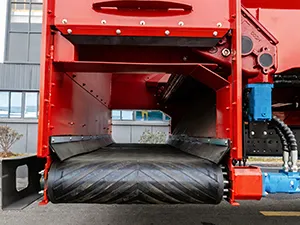

Stable Belt Discharge
A durable rubber discharge belt helps deliver feed smoothly and continuously, creating a cleaner and more even feed row.

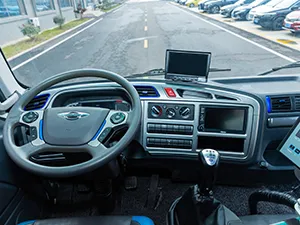

Responsive Electric Control
An electronic control box inside the cab allows simple operation and quick response, helping the operator control the discharge gate more accurately during feeding.
